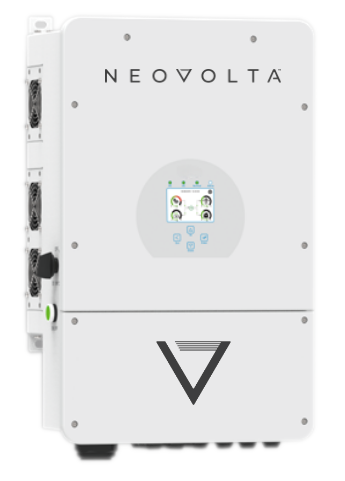

NeoVolta NV7600 Hybrid Inverter - Up to 11.4kW PV Input with 7.6kW AC Output | High-Performance Solar Solution

The NV7600 Hybrid Inverter is a compact, grid‑ready energy management system engineered in California since 2018. Designed for both residential and commercial use, it delivers reliable solar power, flexible battery integration, and seamless grid support—all in a stackable package that’s ready for generator start‑up and future virtual‑power‑plant expansion.

Key Features

Power & Capacity

• Maximum Solar Input: 11.4 kW (self‑limit at 11.4 kW)
• Maximum PV Input Voltage (Voc): 500 V
• MPPT Voltage Range: 150 V – 425 V
• Rated PV Input Voltage: 370 V
• Maximum PV Input Current @ MPPT: 26 A
• Maximum Short‑Circuit Current @ MPPT: 44 A
• MPPTs & Strings: 2 MPPTs; 2 | 2+2 strings per MPPT
• AC Output Capacity: 7.6 kW (≈ 8.36 kW depending on configuration)
• Peak AC Output Capacity: 15.2 kW for 10 seconds


Smart Grid Controls

• Rapid Shutdown: Built‑in compliance with NEC requirements for safety and grid protection
• Grid Pass‑Through: UL‑9540 listed for parallel operation with up to 4 inverters and 5 batteries

Advanced Compatibility

• Generator Ready: Integrated with two‑wire start for standby generator operation
• Virtual Power Plant Ready: Designed for future integration into distributed energy resource management systems

Spec Sheet
