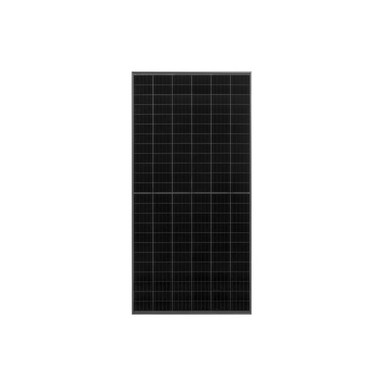

Jinko Solar 390W 144 Half-Cell Solar Panel - 1500V Black on Black, JKM390M-72HBL-V

The Jinko Solar 390W 144 Half-Cell Solar Panel combines advanced monocrystalline technology with robust design, delivering high efficiency and durability for large-scale solar projects. This panel is built with Jinko's renowned commitment to quality, ensuring optimal performance in various environmental conditions.

Key Features

• Powerful Output: Rated at 390W with a PTC rating of 361.7 watts and an efficiency of 19.38%.
• Half-Cell Technology: 144 half-cell configuration enhances performance and minimizes power loss.
• High Voltage Rating: Supports up to 1500V systems for versatile installations.
• Durable Construction: Anodized aluminum alloy frame and DuPont Tedlar backsheet provide weather resistance and extended lifespan.
• Wide Compatibility: Equipped with MC4 connectors and a 12 AWG output cable for easy integration.
• Certified Safety & Standards: Meets ISO9001:2008, ISO14001:2004, IEC61215, and UL1703/61730 certifications, ensuring reliable operation and safety compliance.

Technical Specifications

• Power Rating: 390W
• Voltage Rating: 1500V
• Current Rating: 20A
• Dimensions: 2008 mm (L) x 1002 mm (W) x 40 mm (H)
• Weight: 49.6 lbs.
• Open Circuit Voltage (Voc): 48.6V
• Short Circuit Current (Isc): 10.46A
• Max Power Voltage (Vmpp): 39.64V
• Max Power Current (Impp): 9.84A
• Temperature Coefficient (Pmpp): -0.35%/°C
• Fire Class Type: Type 1

Applications
Ideal for utility-scale and commercial rooftop installations, the Jinko Solar 390W panel delivers high efficiency, durability, and compatibility with modern solar systems, including MLPE integration.

Certifications and Approvals

• ISO9001:2008 Quality Standards
• ISO14001:2004 Environmental Standards
• IEC61215, IEC61730
• UL1703/61730

This robust and efficient solar panel is part of Jinko's Eagle Continental series, designed to deliver exceptional performance and reliability for a wide range of solar applications.
