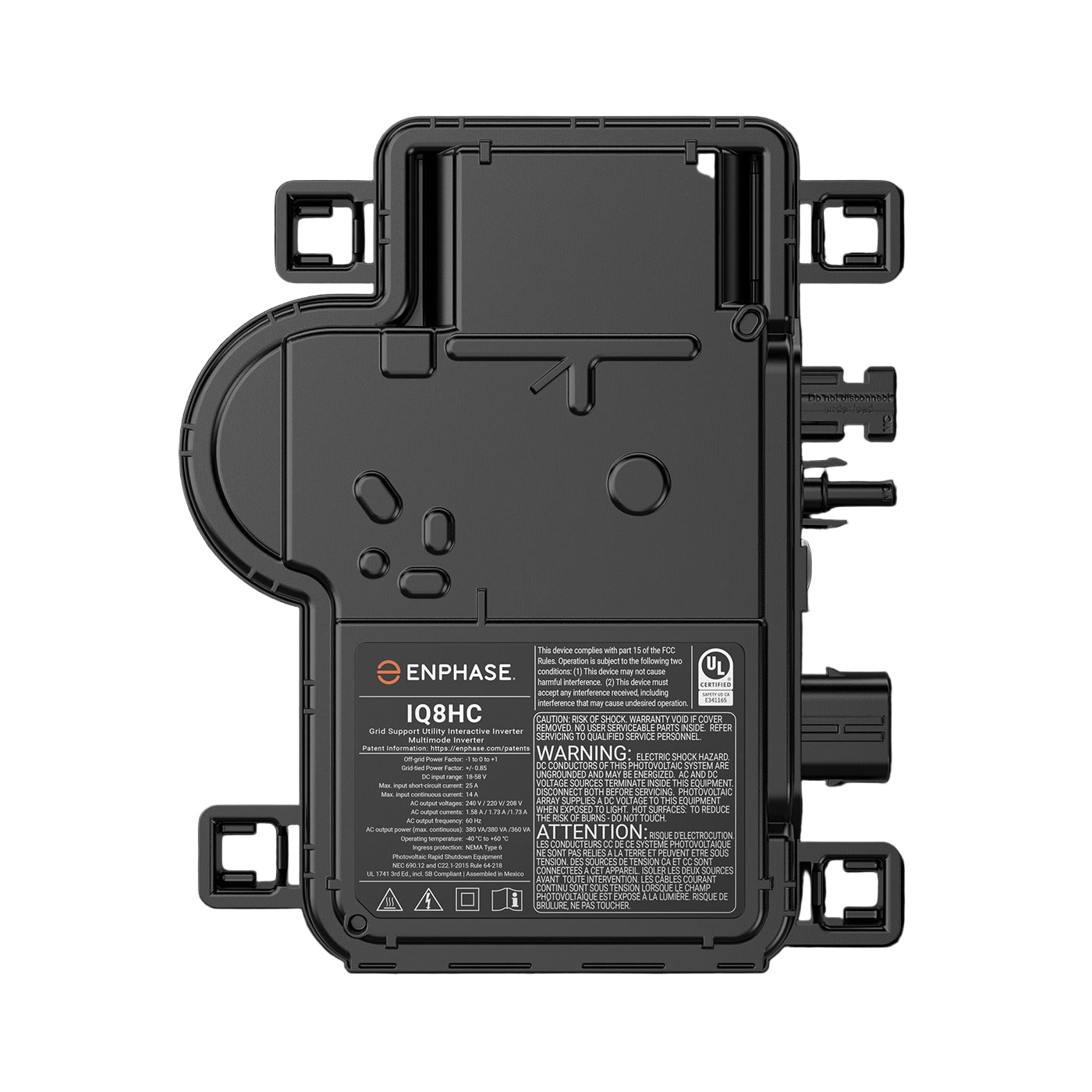

Enphase IQ8HC 1P Microinverter

The Enphase IQ8HC 1P Microinverter is a cutting-edge solution for converting DC power from high-efficiency photovoltaic (PV) modules into AC power. Part of the Enphase IQ8 Series, it features microgrid-forming capabilities, allowing for both grid-tied and off-grid operation when paired with the Enphase IQ System Controller. Its lightweight, compact design with plug-and-play connectors ensures quick and easy installation, making it an ideal choice for residential and commercial solar energy systems.

Features

• Microgrid-Forming Capability: Operates in both grid-tied and off-grid modes when installed with the Enphase IQ System Controller, providing energy resilience.
• High Efficiency: Achieves a peak efficiency of 97.3%, maximizing energy harvest from your PV modules.
• Plug-and-Play Installation: Lightweight and compact with integrated MC4 connectors for rapid installation.
• Advanced Grid Support: Complies with the latest grid standards, including CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB).
• Durable Design: Tested through more than one million cumulative hours of power-on testing, ensuring long-term reliability.
• Remote Updates: Supports remote automatic updates to stay current with evolving grid requirements.

Specifications

• Peak Output Power: 384 VA @ 240 VAC; 366 VA @ 208 VAC
• Maximum Continuous Output Power: 380 VA @ 240 VAC; 360 VA @ 208 VAC
• Nominal Output Voltage: 240 V split-phase (L-L), 180°; 208 V single-phase (L-L), 120°
• Nominal Frequency: 60 Hz
• CEC Weighted Efficiency: 97.0% @ 240 VAC; 96.5% @ 208 VAC
• MPPT Voltage Range: 29.5–45 V
• Maximum Input DC Voltage: 60 V
• Compatible Module Pairing: PV modules ranging from 320 W to 540 W
• Operating Temperature Range: –40°C to 65°C (–40°F to 149°F)

Dimensions

• H: 1.2 inches
• W: 6.9 inches
• D: 8.3 inches

Weight

• Per Unit: 2.4 lbs

Downloads

• IQ8HC Microinverter Data Sheet
