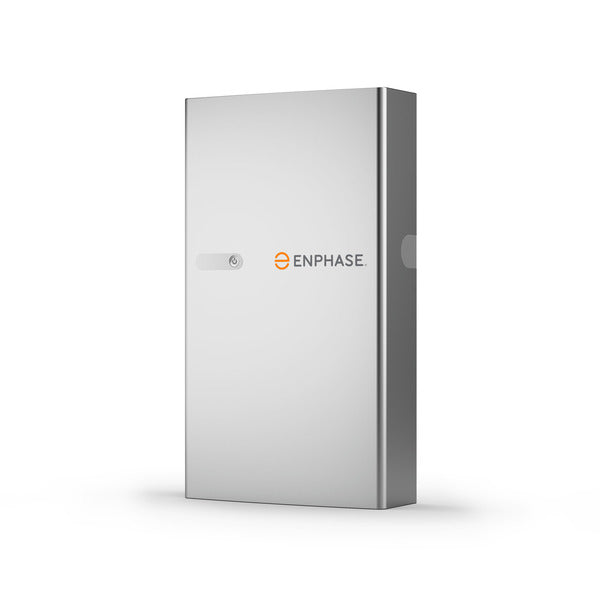

Enphase IQ Battery 5P – Reliable Energy Storage Solution

The Enphase IQ Battery 5P is an integrated AC‑coupled energy storage system that delivers power, safety, and simplicity. With a 5 kWh usable capacity, it provides reliable backup, maximizes self‑consumption, and supports grid‑connected operation—all in a compact, weather‑proof enclosure.

Key Features

• High Capacity: 5 kWh of usable energy ensures dependable backup for essential loads.
• Integrated Microinverters: Six embedded IQ8D‑BAT microinverters deliver 3.84 kVA continuous and 7.68 kVA peak power.
• Robust Chemistry: Lithium iron phosphate (LFP) offers long life, high safety, and low temperature sensitivity.
• Compact & Weather‑Proof: NEMA 3R outdoor enclosure keeps the unit protected from the elements.
• Flexible Mounting: Wall‑mount or pedestal‑mount (sold separately) lets installers choose the best location.
• Long Warranty: 15‑year limited warranty provides peace of mind and confidence in longevity.
• Passive Cooling: Natural convection eliminates fans or moving parts, reducing maintenance.
• Easy Commissioning: Fully integrated AC‑battery system simplifies installation, commissioning, and remote monitoring via the Enphase App.

Specifications

• Battery Voltage: 76.8 V nominal (max 86.4 V)
• Capacity: 5 kWh usable
• Round‑Trip Efficiency: 96 % (DC) / 90 % (AC)
• Weight: 174 lbs (total installed weight)
• Dimensions (HxWxD): 980 mm × 550 mm × 188 mm (38.6 in × 21.7 in × 7.4 in)
• Enclosure Rating: Outdoor – NEMA 3R
• Mounting Options: Wall‑mount (pedestal‑mount sold separately)
• Chemistry: Lithium iron phosphate (LFP)
• Warranty: 15‑year limited warranty (capacity ≥ 60 % and up to 6,000 cycles)

The Enphase IQ Battery 5P is the ideal addition to an Enphase‑tied PV system, delivering reliable backup, higher self‑consumption, and enhanced control through seamless integration with the Enphase platform.
