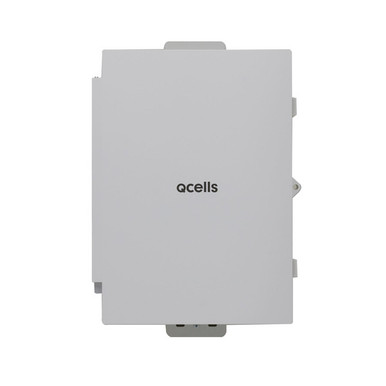

Qcells Q.Home Combiner 80 G1

The Qcells Q.HOME COMBINER 80 G1 is a combiner box designed to integrate photovoltaic (PV) and energy storage systems within residential energy solutions. It consolidates up to four 2-pole distributed generation branch circuits, streamlining installation and enhancing system reliability.

Key Features:

• Network Connectivity: Offers Wi-Fi, Ethernet, or optional cellular communication for seamless monitoring and control.
• Outdoor Installation: Housed in a NEMA Type 3R enclosure, suitable for outdoor environments.
• Integrated Metering: Includes a pre-installed revenue-grade production meter and a pair of 200 A clamp-type current transformers for consumption monitoring.
• Compatibility: Supports Eaton BR series circuit breakers, facilitating flexible system configurations.

Specifications:

• System Voltage: 120/240 VAC, 60 Hz
• Busbar Rating: 125 A
• Maximum Continuous Current Input: 64 A
• Maximum Output Fuse/Circuit Rating: 90 A
• Branch Circuits: Up to four 2-pole Eaton BR series Distributed Generation breakers (not included)
• Total Branch Circuit Breaker Rating: 80 A of distributed generation; 95 A with Gateway breaker included
• Gateway Circuit Breaker: 15 A Eaton breaker (included)
• Consumption Monitoring Accuracy: ±2.0%
• Warranty: 5 years
• Country of Manufacture: Vietnam

The Q.HOME COMBINER 80 G1 is a component of Qcells' comprehensive Q.HOME SMART solution, providing a unified platform for energy management. Its flexible design and integrated features make it a reliable choice for residential energy systems.
