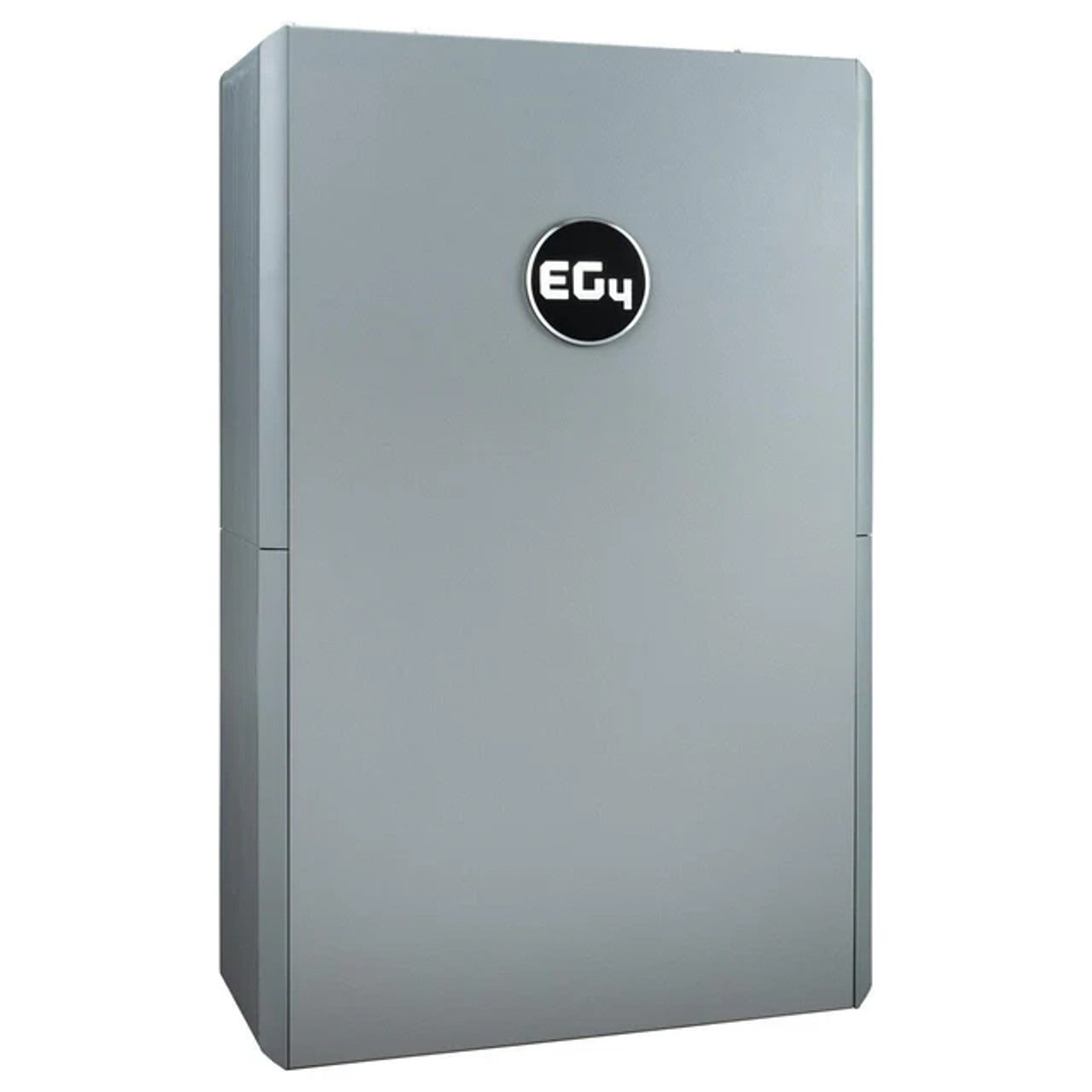

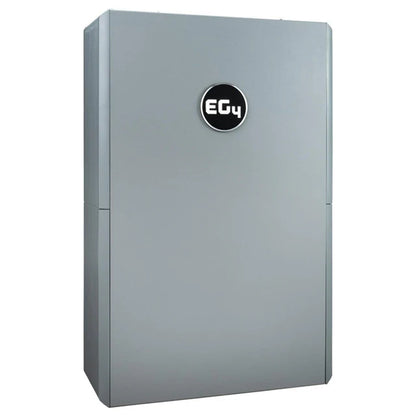

Introducing the EG4 PowerPro WallMount All-Weather Battery
The EG4 PowerPro WallMount Battery is the ultimate energy storage solution designed to meet all your solar power needs. Built with robust 48V 280Ah Lithium Iron Phosphate (LiFePO4) technology, this cutting-edge battery provides unmatched reliability and performance, ensuring a continuous and stable power supply.
Key Features
Confident Power
- Delivers a continuous 10kW output, with peak power of 10.5kW (for 10 seconds) and 15.4kW (for 3 seconds).
- Constant discharge current of 200A.
- Over 8,000 cycles at 80% Depth of Discharge (DOD), with a projected lifetime production of 82.6MWh.
Reliability and Intelligence
- Equipped with a smart Battery Management System (BMS) to enhance efficiency, reliability, and safety.
- Self-heating capabilities for optimal performance in low-temperature conditions.
All-Weather Durability
- Engineered for outdoor use, this battery withstands diverse weather conditions effortlessly.
- Features weather-rated quick connectors (Amphenol) and an integrated self-heating function for cold climates.
Safety Assured
- Dual onboard fire arrestors for fail-safe protection.
- Emergency stop feature enables instant shutdown through RSD/ESS disconnect or inverter RSD.
- 10-year warranty provided by EG4 Electronics.
Seamless Integration
- Compatible with any hybrid or off-grid inverter, including popular brands like EG4, Victron, Growatt, Megarevo, Luxpower, Deye, and Sol-Ark.
- Onboard LCD touchscreen enables easy BMS monitoring and communication.
- Quick-connect battery cables allow for secure and efficient battery connections.
Comprehensive Certifications
- UL9540A, UL1973, and UL9540 (with EG4 18kPV certification for PowerPro ESS) ensure reliability and compliance.
- Outdoor Rating: IP65 for superior protection against the elements.
PowerPro ESS Compatibility
- Optional conduit box add-on enables seamless integration with the EG4 18kPV system, creating a full Energy Storage System (ESS).
- Requires no thermal monitoring or ventilation, and is maintenance-free.
Battery Cable Connections
- Supports up to 3 batteries in parallel with a single inverter, 4 batteries with two inverters, or 5 batteries with three inverters.
- For systems with up to six 18kPV inverters, a recommended ratio of 3 batteries per pack should be maintained for optimal balance.
Upgrade your power storage setup with the EG4 PowerPro WallMount All-Weather Battery—built for durability, reliability, and seamless integration into any solar system
SPEC SHEET
EG4 Electronics 14.3kWh WallPower Pro LFP Battery
| Specifications | |
|---|---|
| Total Energy Capacity | 14.3kWh @25C, 100% SOC |
| Voltage | 51.2V |
| Capacity | 280Ah ±2% |
| Charging Voltage (Bulk/Absorb) | 56.0V (±0.8V) |
| Charge Current | 200A Max. Continuous |
| Discharge Current | 200A Max. Continuous |
| Cell Balance | 120mA |
| Temperature Accuracy | 3% |
| Voltage Accuracy | 0.5% |
| Current Accuracy | 3% |
| SOC | 5% |
| Power Consumption (Standby) | <300uA |
| Power Consumption (Operating) | <25mA |
| Communication Ports | RS485/CAN |
| Voltage | 56V |
| Power Consumption | 224W |
| Internal Battery Temperature | ≤32°F (0°C) or ≥41°F (5°C) |
| Dimensions (H × W × D) | 34.6 × 22.3 × 9.1 in. (88 × 56.6 × 23.2cm) |
| Weight | 308.6 lbs. (140 kg) |
| Design Life | >15 years |
| Cycle Life | >8000 Cycles @ 0.5C 80% DOD |
| Lifetime Production | 82.6MWh* |
