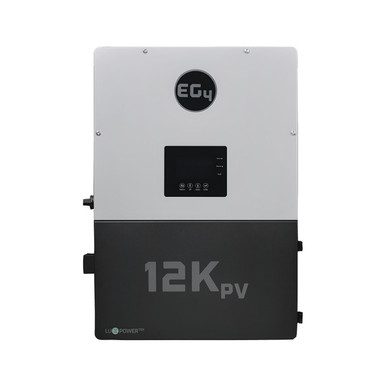

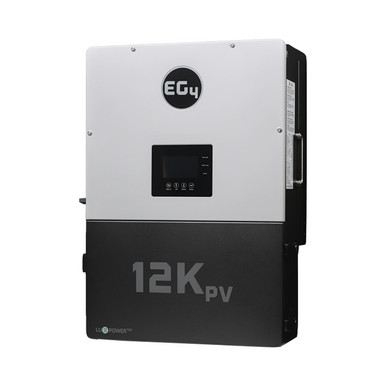

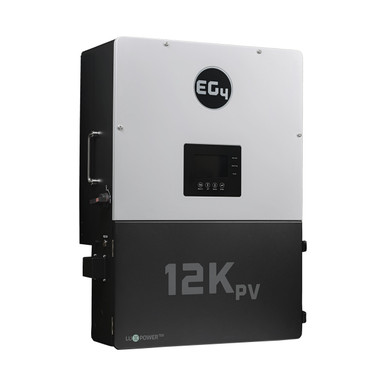

EG4 12kPV Hybrid Solar Inverter - 48V, 12000W Input, 8000W Output, 120/240V Split Phase, RSD, All-In-One

The EG4 12kPV Hybrid Solar Inverter is a state-of-the-art all-in-one solution that combines efficiency, versatility, and reliability for hybrid solar systems. Designed for 48V applications, it supports a 12kW PV input capacity and delivers 8kW of continuous output power, making it ideal for residential and light commercial installations. Its split-phase 120/240V design allows compatibility with a wide range of appliances, while integrated rapid shutdown (RSD) and monitoring features enhance safety and control.

Features

• High Performance: 12kW PV input and 8kW output for consistent energy supply.
• Split-Phase Power: 120/240V output for seamless compatibility with household and commercial loads.
• All-In-One Design: Combines an inverter, charger, and controller in a single, compact unit.
• Rapid Shutdown (RSD): Enhances safety by complying with NEC 2017 and 2020 requirements.
• Battery Compatibility: Supports various battery chemistries, including Lithium, AGM, and Gel.
• User-Friendly Interface: LCD display and remote monitoring for convenient system management.
• Robust Protections: Includes overvoltage, undervoltage, overload, and short circuit protection.

Specifications

• Input Voltage: 48V DC
• PV Input Capacity: 12kW
• Output Power: 8kW continuous, 10kW peak
• Output Voltage: 120/240V AC Split Phase
• Efficiency: ≥96%
• MPPT Range: 120–450V
• RSD Compliance: NEC 2017 & 2020
• Cooling: Intelligent fan cooling
• Operating Temperature: -10°C to 50°C (14°F to 122°F)

Dimensions

• H: 23.6 inches
• W: 14.4 inches
• D: 7.9 inches

Weight

• Unit Weight: 62 lbs

Downloads

• EG4 12kPV Connection Overview & Paralleling Guide
• EG4 12kPV Technical Specifications Sheet
• EG4 12kPV Quick Start Guide
• EG4 12kPV Device Monitoring & Settings Guide
• EG4 12kPV Troubleshooting & Maintenance Guide
• EG4 12kPV Firmware Changelog & Update Guide
