Product Description

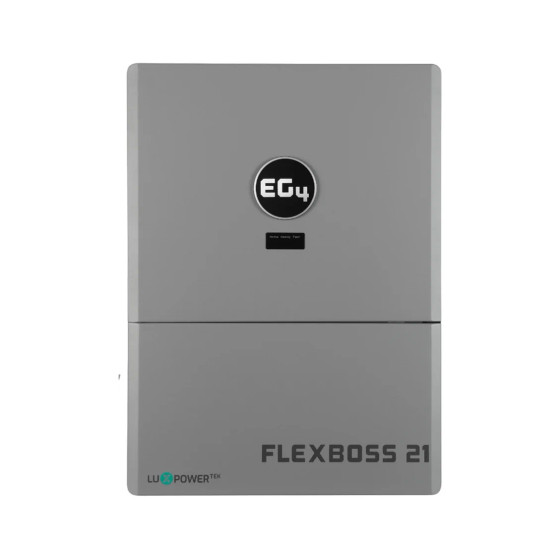

The EG4 FlexBOSS21 Hybrid Inverter is a high-performance solar solution designed for residential and small commercial applications. Operating at 48V with a split-phase configuration, it supports up to 21kW of photovoltaic (PV) input, delivering reliable and efficient energy management.
Key Features:
- High PV Input Capacity: Accommodates up to 21kW of PV input, maximizing solar energy utilization.
- Robust Power Output: Provides 16kW of continuous AC output when utilizing both PV and battery sources, and up to 12kW using battery power alone.
- Multiple MPPTs: Equipped with three Maximum Power Point Trackers (MPPTs) for optimal solar energy harvesting.
- Scalability: Supports paralleling of up to 16 units, allowing for a total output of 560kW, suitable for expanding energy needs.
- Advanced Monitoring: Features updated EG4 monitoring software for comprehensive remote management, including mobile notifications and remote settings adjustments.
- Seamless Integration: Designed to work seamlessly with the EG4 GridBOSS, providing users with enhanced control over their entire Energy Storage System (ESS).
Technical Specifications:
- AC Input Voltage: 120/240VAC; 120/208VAC (L1/L2/N required)
- Frequency: 60 Hz (default); 50 Hz capable
- Maximum AC Input Current: 50A at 240V; 57.7A at 208V
- Maximum AC Bypass: 90A
- PV Input Voltage Range: 100 – 600VDC
- MPPT Operating Voltage Range: 120 – 440VDC
- Maximum Utilized Solar Power: 21kW
- Battery Voltage Range: 40 – 60VDC
- Maximum Charge/Discharge Current: 250A at 48VDC; 234A at 51.2VDC
- Efficiency: CEC efficiency of 96.9%; maximum efficiency (PV to grid) of 97%
- Dimensions (H x W x D): 29.52 x 20.47 x 11.22 inches (750 x 520 x 285 mm)
The EG4 FlexBOSS21 Hybrid Inverter offers a versatile and scalable solution for efficient energy management, ensuring reliable power supply and seamless integration with existing energy systems.
| Spec Sheet | View |
Warranty Information
10 - YEAR WARRANTY
