Product Description
 |
 |

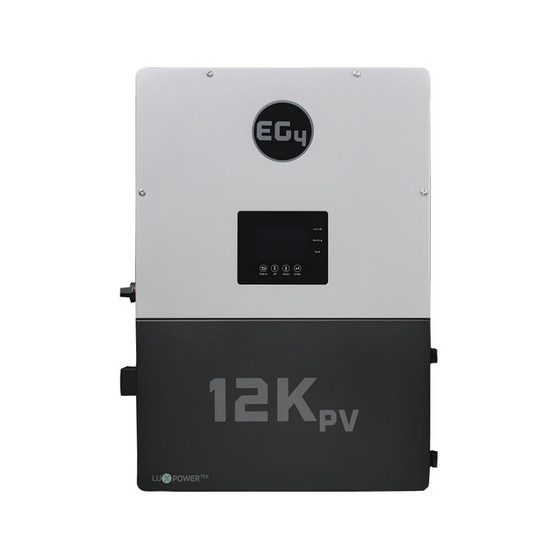

The EG4 12kPV Hybrid Solar Inverter is a state-of-the-art all-in-one solution that combines efficiency, versatility, and reliability for hybrid solar systems. Designed for 48V applications, it supports a 12kW PV input capacity and delivers 8kW of continuous output power, making it ideal for residential and light commercial installations. Its split-phase 120/240V design allows compatibility with a wide range of appliances, while integrated rapid shutdown (RSD) and monitoring features enhance safety and control.
Features
- High Performance: 12kW PV input and 8kW output for consistent energy supply.
- Split-Phase Power: 120/240V output for seamless compatibility with household and commercial loads.
- All-In-One Design: Combines an inverter, charger, and controller in a single, compact unit.
- Rapid Shutdown (RSD): Enhances safety by complying with NEC 2017 and 2020 requirements.
- Battery Compatibility: Supports various battery chemistries, including Lithium, AGM, and Gel.
- User-Friendly Interface: LCD display and remote monitoring for convenient system management.
- Robust Protections: Includes overvoltage, undervoltage, overload, and short circuit protection.
Specifications
- Input Voltage: 48V DC
- PV Input Capacity: 12kW
- Output Power: 8kW continuous, 10kW peak
- Output Voltage: 120/240V AC Split Phase
- Efficiency: ≥96%
- MPPT Range: 120–450V
- RSD Compliance: NEC 2017 & 2020
- Cooling: Intelligent fan cooling
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
Dimensions
- H: 23.6 inches
- W: 14.4 inches
- D: 7.9 inches
Weight
- Unit Weight: 62 lbs
Downloads
- EG4 12kPV Connection Overview & Paralleling Guide
- EG4 12kPV Technical Specifications Sheet
- EG4 12kPV Quick Start Guide
- EG4 12kPV Device Monitoring & Settings Guide
- EG4 12kPV Troubleshooting & Maintenance Guide
- EG4 12kPV Firmware Changelog & Update Guide
